Large 2″ Horn [pair] With Driver, Lens, & Stand
1999.00
Horn
Horn loudspeaker with 2″ throat, horn, driver, lens, and stand. This combination produces a near hemispherical polar pattern for home use. The three stand pieces allows for this horn to sit horizontal on a flat surface, with the back of the lens open, creating enhanced sound-stage and imaging effects. Mounted to a baffle without the stand, the lens banks can be moved closer together or further apart for different radiating patterns in a room.
NOTE:This horn lens combination takes two weeks to print on a 3D printer. Often we are back logged. We are a small family owned company hand making products at an affordable price. It is not uncommon for orders of the most labor intensive products to take more than four weeks, and sometimes longer depending on the quantity of orders.
Impedance: 8Ω
Throat: 2 inches diameter.
Standard four bolt pattern.
Lens width: 20″ when tips of each lens are just touching in the middle of the horns mouth
Horn mounth: Flang 7.5″ x 10.5″
Hole to cut for horn: 8.5″ x 6″
Length of horn without lens: 12″
Width of lens from baffle or stand mount: 7″ Width noted above.

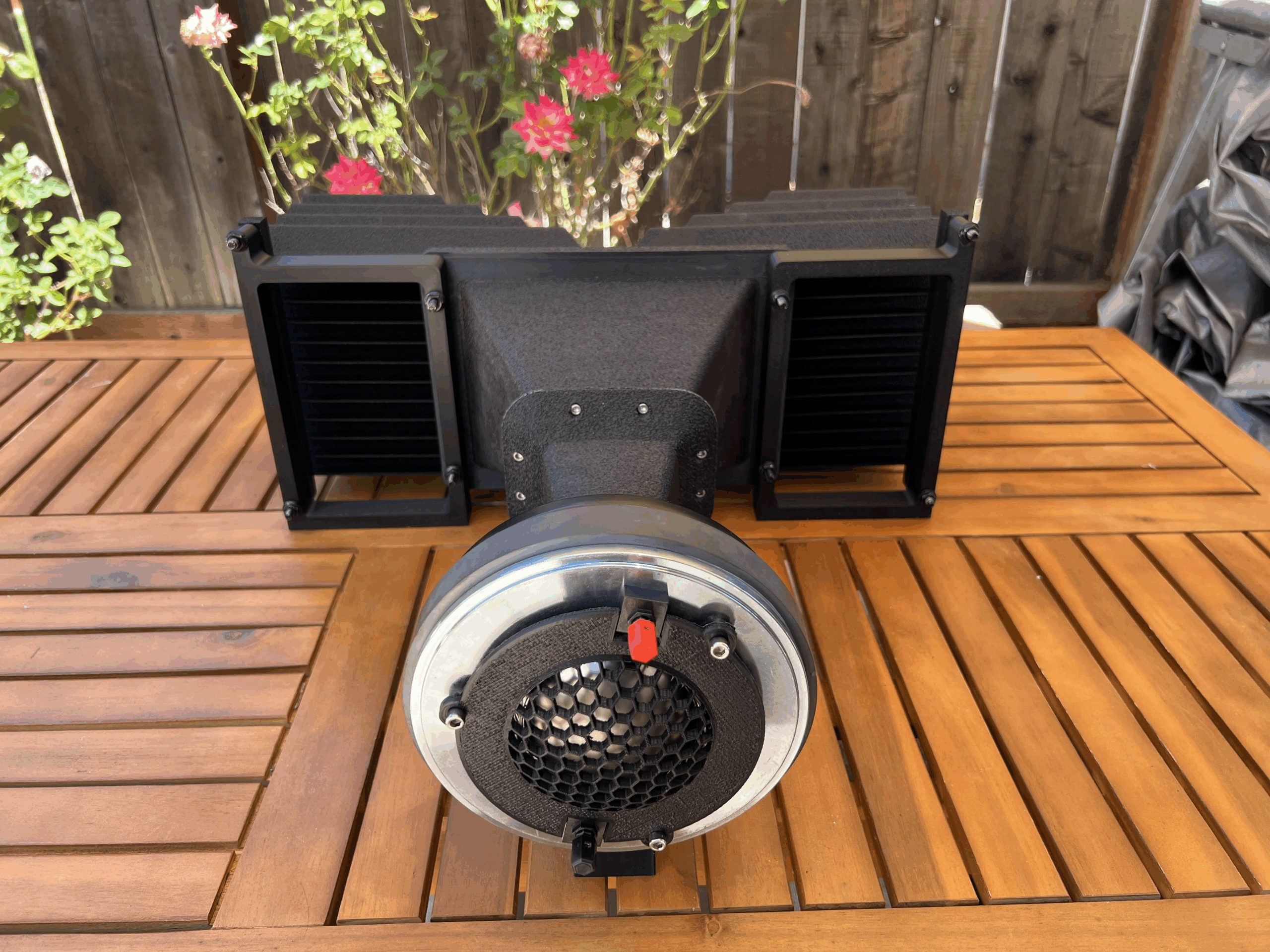

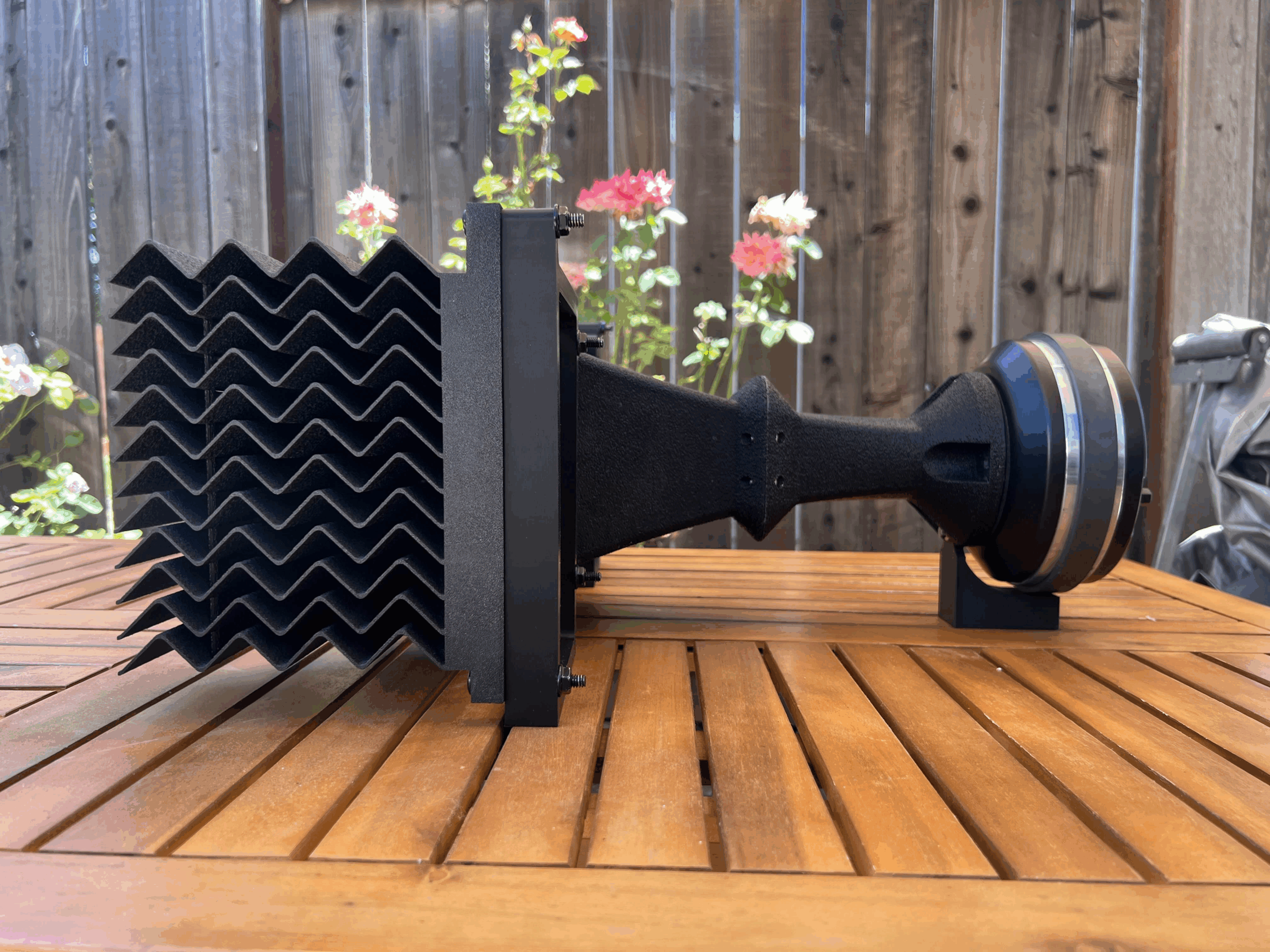

The lens can be screwed into the front of a baffle, or bolted to the provided stand pieces. Note in the photos how the stand attaches to the horn and lens.
This horn driver comes with a screen on the back for dipole radiation for open baffle effects. This increases the soundstage size and scope.
Recommended 1st order crossover 40uF maximum for nearly 300hz -3dbs, 30uF typical 400hz -3dbs.
Sensitivity: 110dbs w/m
We recommend the use of a 100w Eminence Lpad to dial in the amount of volume compared to other drivers in a speaker.
